Data protection functions provide encryption and secure transmission options to strengthen project security levels.
Safe data transmission and storage are supported through liveform encryption settings and secure transmission settings.

​
Liveform Encryption Settings

You can maintain higher security levels for user submissions through liveform encryption settings.

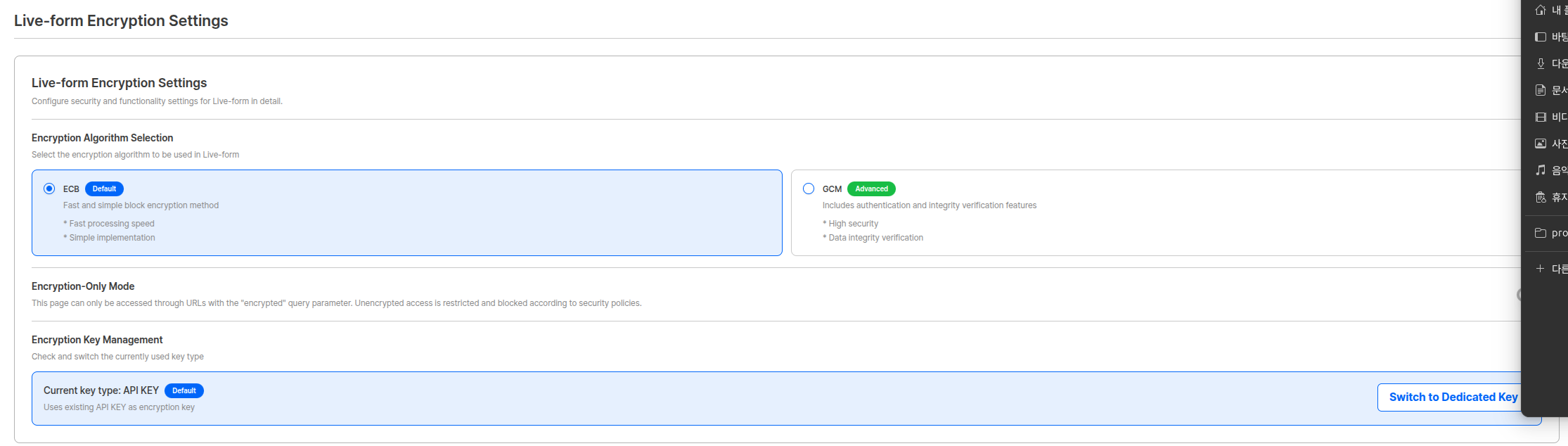

Liveform encryption settings

​
Encryption Algorithm Selection

When encryption is needed in liveform URL’s Query String, data must be encrypted using the selected encryption algorithm and encryption key.
AlgorithmDescription
ECB (Electronic Codebook)Fast and simple block encryption method
GCM (Galois/Counter Mode)Enhanced encryption method including authentication and integrity functions
How to Use After Algorithm SelectionAfter selecting encryption algorithm, parameters requiring encryption in liveform URL’s Query String must be encrypted using the selected algorithm and encryption key, then used in the form encrypted={encrypted_data}.

​
Encryption-only Mode

Activate encryption-only mode when you want to encrypt and use all Query String parameters.
Encryption-only mode
When encryption-only mode is activated, only pid, encrypted, lang parameters are allowed in liveform URL, and all other parameters must be encrypted and included in the encrypted parameter. Allowed URL Format:
https://form.argosidentity.com?pid={project_Id}&encrypted={encrypted_data}&lang=ko
Not Allowed URL Format:
https://form.argosidentity.com?pid={project_Id}&encrypted={encrypted_data}&email=user@example.com
Encryption-only Mode PrecautionsWhen encryption-only mode is activated, all unencrypted Query String parameters are ignored. All data must be encrypted and included in the encrypted parameter.

​
Encryption Key Management

Manages keys to be used for encryption. You can use API KEY or issue and use a dedicated key (secretKey).

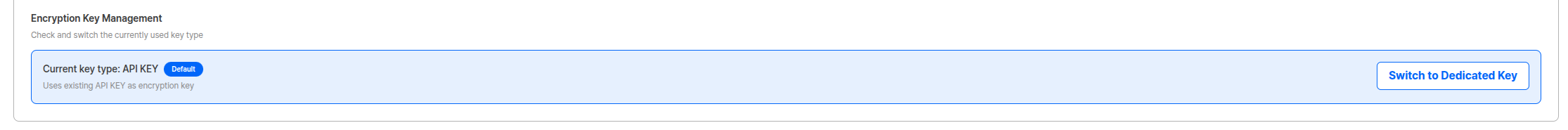

Encryption key management

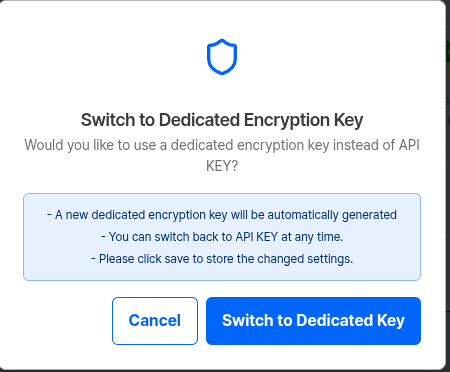

Encryption key issuance
Key TypeDescription
API KEYUse the default API key assigned to the project as encryption key
Dedicated Key (secretKey)Dedicated encryption key newly issued and used in liveform
Dedicated Key (secretKey) Important NoticeNewly issued dedicated key (secretKey) is only displayed at issuance, so be sure to store it safely. If lost, you must reissue and use, and existing keys can no longer be used.
Key Selection Guide
  • Using API KEY: Can start quickly with simple settings.
  • Using Dedicated Key (secretKey): Can strengthen security by using different keys in liveform and API.

​
How to Use Liveform URL Encryption

Learn how to encrypt and use Query String parameters in liveform URLs.

​
Step 1: Prepare Data to Encrypt

Prepare Query String parameters to encrypt in JSON format.
{
  "email": "user@example.com",
  "userid": "user123",
  "cf1": "custom_field_1",
  "cf2": "custom_field_2",
  "cf3": "custom_field_3",
  "token": "token_id"
}

{
  "email": "user@example.com",
  "userid": "user123",
  "knowledgeField": "birthDate,gender,nationality",
  "knowledgePrefill": "gender=male,nationality=USA,birthDate=1980-01-01"
}
Non-encryptable Parameterspid, lang query strings and sid, action query strings used in ‘Additional Process (Injection)’ page do not support encryption. However, when using Injection, sid and action must be encrypted by including them inside the encrypted parameter.

​
Step 2: Perform Encryption

Encrypt data using the selected encryption algorithm (ECB or GCM) and encryption key (API KEY or secretKey).

Encryption Guide

View detailed encryption/decryption methods and code examples.
Encryption Example (ECB Method):
// Node.js example
const crypto = require('crypto');

function encryptECB(data, apiKey) {
  const hashedKey = crypto.createHash('sha256').update(apiKey).digest();
  const cipher = crypto.createCipheriv('aes-256-ecb', hashedKey, null);
  return cipher.update(JSON.stringify(data), 'utf8', 'base64') + cipher.final('base64');
}

// Usage example
const data = {
  email: "user@example.com",
  userid: "user123",
  token: "token_id"
};
const encrypted = encryptECB(data, 'YOUR_API_KEY_OR_SECRET_KEY');

​
Step 3: Add Encrypted Data to URL

Add encrypted data to the encrypted query parameter.
https://form.argosidentity.com?pid={project_Id}&encrypted={encrypted_data}
URL EncodingEncrypted data must be URL encoded before use in URLs.

​
Secure Transmission Settings

Settings to strengthen security for data transmission via API methods.

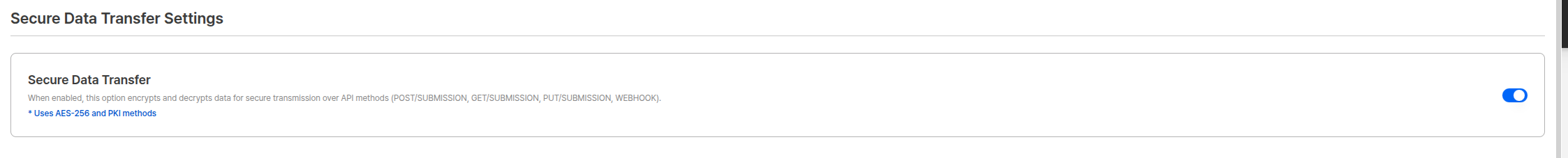

Secure transmission settings

​
Secure Data Transmission

When secure data transmission option is activated, all data transmission between ARGOS and customers is encrypted.
SettingDescription
Secure Data TransmissionEncrypts and transmits data in API methods (GET, POST, PATCH, etc.) and webhooks.
Important: Encryption/Decryption RequiredWhen secure data transmission option is activated, all API request (Request) and response (Response) data must be encrypted/decrypted. Errors occur if requests are made with unencrypted data.

​
API Request Data Encryption

When secure data transmission is activated, Request Body must be encrypted when making API requests. Encryption Methods:
  • API Requests (GET, POST, PATCH): AES-256-ECB method
  • Webhook Data: AES-256-CBC method
Request Example:
// POST /submission request example
const requestData = {
  email: "user@example.com",
  fullName: "John Doe",
  issuingCountry: "USA",
  birthDate: "1990-01-01"
};

// Encrypt data
const encryptedBody = encryptECB(requestData, apiKey);

// Send encrypted data as body
fetch('https://rest-api.argosidentity.com/v3/submission', {
  method: 'POST',
  headers: {
    'x-api-key': apiKey,
    'Content-Type': 'application/json'
  },
  body: JSON.stringify({
    body: encryptedBody
  })
});

​
API Response Data Decryption

When secure data transmission is activated, API responses are also encrypted, so decryption is required. Response Format:
{
  "data": "encrypted-string",
  "isEncrypted": true
}
Decryption Example:
// Response processing
const response = await fetch('https://rest-api.argosidentity.com/v3/submission/{submissionId}', {
  headers: {
    'x-api-key': apiKey
  }
});

const responseData = await response.json();

if (responseData.isEncrypted) {
  // Decrypt encrypted data
  const decryptedData = decryptECB(responseData.data, apiKey);
  const submission = JSON.parse(decryptedData);
  console.log(submission);
} else {
  // Unencrypted case (generally does not occur)
  console.log(responseData);
}

​
Webhook Data Encryption/Decryption

Webhook data is encrypted using AES-256-CBC method.

Encryption Guide

Learn webhook data encryption/decryption methods in detail.

​
Configuration Guide by Scenario

When selecting encryption algorithm and encrypting only some Query Strings.Configuration:
  • Encryption Algorithm: Select ECB or GCM
  • Encryption Key: Select API KEY or dedicated key
  • Encryption-only Mode: Deactivated
Usage Example:
https://form.argosidentity.com?pid={project_Id}&email=user@example.com&encrypted={encrypted_token_data}
In this case, email is a normal parameter, and sensitive information such as token is encrypted and included in the encrypted parameter.
When encrypting and using all Query String parameters.Configuration:
  • Encryption Algorithm: Select ECB or GCM
  • Encryption Key: Select API KEY or dedicated key
  • Encryption-only Mode: Activated
Usage Example:
https://form.argosidentity.com?pid={project_Id}&encrypted={all_parameters_encrypted_data}&lang=ko
In this case, all parameters except pid, lang must be encrypted and included in the encrypted parameter.
When strengthening security for data transmission via API.Configuration:
  • Secure Data Transmission: Activated
Required Tasks:
  • Encrypt all API requests (Request Body)
  • Decrypt all API responses (Response Body)
  • Decrypt webhook received data
When secure data transmission is activated, all API communication is encrypted, so encryption/decryption logic must be implemented on the client side.
